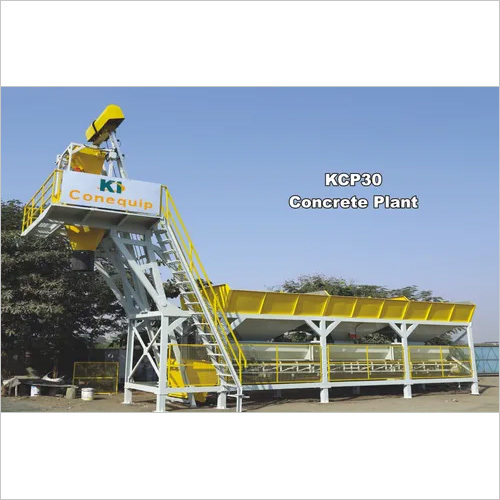

Mobile Concrete Batching Mixing Plant
Product Details:
- Type Concrete Mixing Plant, Modular Concrete Mixing Machine, Mobile Concrete Batching Plant
- Supply Ability : 3 Per Day
- Click to view more
Price And Quantity
- 1500000.00 - 1.50 INR/Piece
- 01 Piece
Product Specifications
- Concrete Mixing Plant, Modular Concrete Mixing Machine, Mobile Concrete Batching Plant
Trade Information
- 3 Piece Per Day
- 10-15 Days
- as per standard
- All India
Product Description
Manufacturer of construction machine like concrete batching plant, Mobile Concrete Batching Mixing Plant & batching plant With an aim to be a pioneer in our domain, we have been engaged in manufacturing and exporting Mobile Concrete Batching Mixing Plant. It is ideal for mixing different ingredients or materials for forming concrete. Thus, it provides a turnkey solution to ready-mix concrete batching or mixing plant. Moreover, the offered Mobile Concrete Batching Mixing Plant is useful in the construction of canals, bridges, airports, highways, industrial and multi-story buildings and ready-mix concrete plant.
Features:
- Easy installation process
- User-friendly operations
- Offers high resistance to corrosion
Mobile Concrete Batching Mixing Plant
| Description | Units | BIN-45 | BIN-60 | BIN-80 | BIN-120 |
| Concrete Output/hr | m3/hr | 45 | 60 | 80 | 120 |
| Type of Mixer | - | Twin Shaft | Twin Shaft | Twin Shaft | Twin Shaft |
| Input/Output Capacity | Liter | 1500/1000 | 2250/1500 | 3000/2000 | 4500/3000 |
| *Output Batch | m3 | 1 | 1.5 | 2 | 3 |
| Mixer Motor Power | HP | 30 x 2 = 60 | 40 x 2 = 80 | 50 x 2 = 100 | 75 x 2 = 150 |
| No. of Aggregate Bin | Nos. | 4 | 4 | 4 | 4 |
| Capacity of Each Bins | m3 | 15 | 25 | 30 | 30 |
| Aggregate waiting hopper on mixer | - | Yes | Yes | Yes | Yes |
| Elevating Conveyor for Aggregate Dish. | - | Yes | Yes | Yes | Yes |
| Weighing System | - | Electronic Digital | Electronic Digital | Electronic Digital | Electronic Digital |
| Aggregate Scale | Kg | 2500 | 3750 | 5000 | 7500 |
| Water Scale | Liter | 300 | 450 | 600 | 950 |
| Cement Scale | Kg | 600 | 900 | 1200 | 1800 |
| Additive Scale | Liter | 100 | 100 | 100 | 150 |
| Water Connection | Diameter | 2†| 2†| 2†| 2†|
| Greasing System | - | Automatic | Automatic | Automatic | Automatic |
| Air Compressor | HP | 5 | 7.5 | 10 | 12 |
| Screw Conveyor | N.B. | 8†| 8†| 10†| 10†|
| Standard Supply of Screw | Nos. | 1 | 1 | 1 | 1 |
| Moisture Probe | - | Original | Original | Original | Original |
| Total Power | HP | 126.25 | 158.25 | 179.25 | 248.75 |
